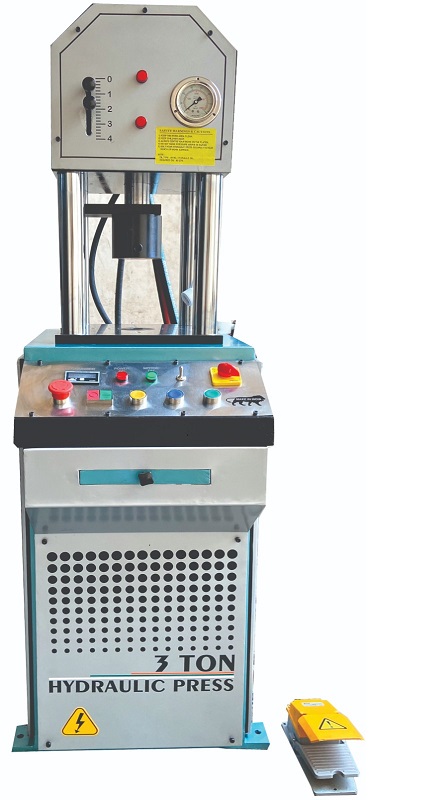

MANUAL HYDRAULIC DIE CUTTING MACHINE.
Machine specification:
Mechanism of working of hydraulic die cutting is same as automatic die cutting press.Only difference is that there is no semiautomic or automatic mode in this machine.
Manual Hydraulic Die Cutting Machine Technical Details
| Model | BMT 29 |
|---|---|
| Capacity | 3 ton,5ton,10ton(on order) |
| Working Speed | 80-100/Min |
| Motor | 3 HP |
| Oil capacity | 70 lit |
| Stroke | 75 mm |
| Working area | 200 X 200 |
| Automation part | Digital Strip Feeder |
| Feeder Size | Auto Adjustable |
| Machine Dimension in inch | 36 X 40 X 60 |
