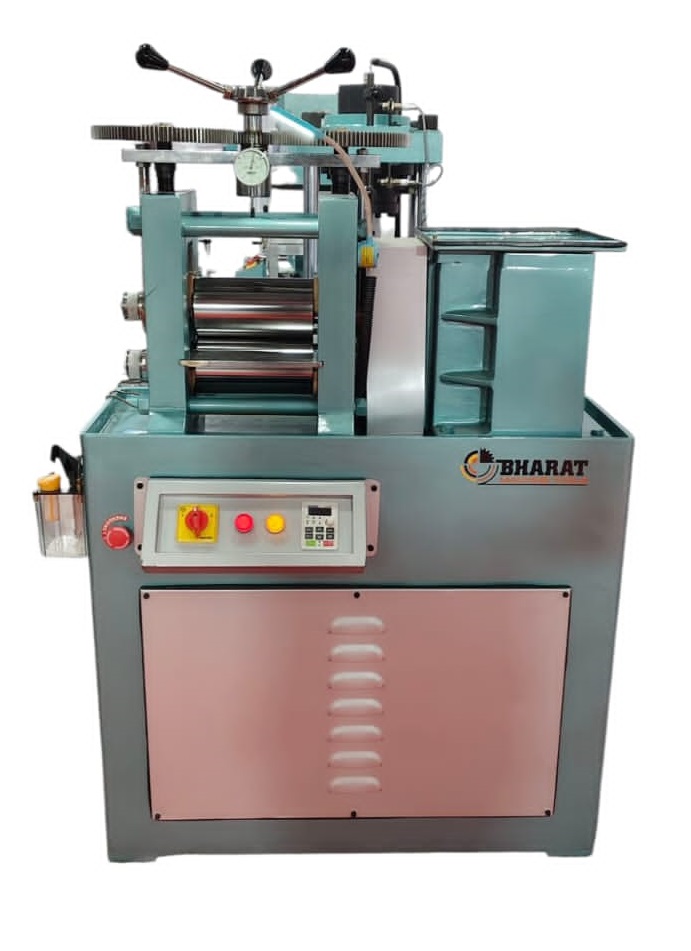

Single Head Heavy Duty is a high quality machine with high load capacity
motor and gear box.

Single head heavy duty rolling machine is a high quality rolling machine with high quality Motor and gear box. Rollers used are of WPS-D2 steel quality which is the most superior steel quality in market.There is an auto lubrication system to provide oil to rollers. We give 1 year waranty in this machine. Machine has zero noise and vibration and works very smoothly. It gives high productivity of low diameter wire or sheet.

Hellosamples.

Machine Specifications

Available Roller sizes:- 6'',8''(Click buttons below to view details)

Machine specification:

6'' Roller Model

Dimension/Model	BMT20	BMT21
Roller width x Diameter	152 X 76 / 6'' X 3''	152 x 101 / 6'' X 4''
Wire Grooves From to	As per req	As per req
Max Sheet Width can be rolled	75	100
Max Apperture of Rolls	35	38
Power supply	2 h.p / 1.5 kw. 3 phase	5 h.p / 3.75 kw. 3 phase
Depth per rotation of Staring	0.99	0.99
Machine dimensions in cm.	77 X 38 X 138	88 X 70 X 180
Machine net weight	285.00 kg	375.00 kg

8'' Roller Model

Dimension/Model	BMT22	BMT23
Roller width x Diameter	203 X 101 / 8'' X 4''	203 x 125 / 8'' X 5''
Wire Grooves From to	As per req	As per req
Max Sheet Width can be rolled	125	150
Max Apperture of Rolls	38	38
Power supply	5 h.p / 3.75 kw. 3 phase	7.5 h.p / 5.62 kw. 3 phase
Depth per rotation of Staring	0.99	0.99
Machine dimensions in cm.	120 X 50 X 160	120 X 50 X 165
Machine net weight	700.00 kg	1000.00 kg

GO BACK TO PREVIOUS PAGE

SINGLE HEAD ROLLING MACHINE HEAVY DUTY

Machine specification:

Get Quotation

Description Technical Details Samples Videos

Single head rolling machine heavy duty is available in 2 sizes: 6"",8"" and 10"". It provides greater thinning of wire and sheets as compared to other rolling machine models. It can thin the wire to as low 21-22 gauge. Following are various features of this machine:

Lubrication System
Side roller for design purpose
Gear box

HEAVY SINGLE HEAD ROLLING MACHINE TECHNICAL DETAILS

MODEL	BMT 20	BMT 21	BMT 22	BMT 23	BMT 24
Roller WidthxDiameter	152x76/6'' x 3''	152 x 101/ 6'' x 4''	203 x 201/ 8'' x 4''	200 x 125/8'' x 5''	250 x 150/10'' x 6''
Wire groves from to	As per req	As per req	As per req	As per req	As per req
Max Sheet Width can be rolled	75	100	125	150	200
Max Apperture of Rolls	38	38	38	38	42
Power supply	2 h.p / 1.5 w 3 phase	5 h.p / 3.75 w. 3 phase	5 h.p / 3.75 w. 3 phase	7.5 hp/5.62 w 3 phase	10 hp/7.5 w 3 phase
Motor type	AC Drive/DC Drive	AC Drive/DC Drive	AC Drive/DC Drive	AC Drive/DC Drive	AC Drive/DC Drive
Depth per rotation of staring	0.99	0.99	0.99	0.99	0.99
Machine dimensions in cm.	77 X 38 X 138	88 X 70 X 180	120 X 50 X 160	120 X 50 X 165	165 X 60 X 180
Machine net weight	285.00 kg	375.00 kg	500.00 kg	700.00 kg	1000.00 kg
