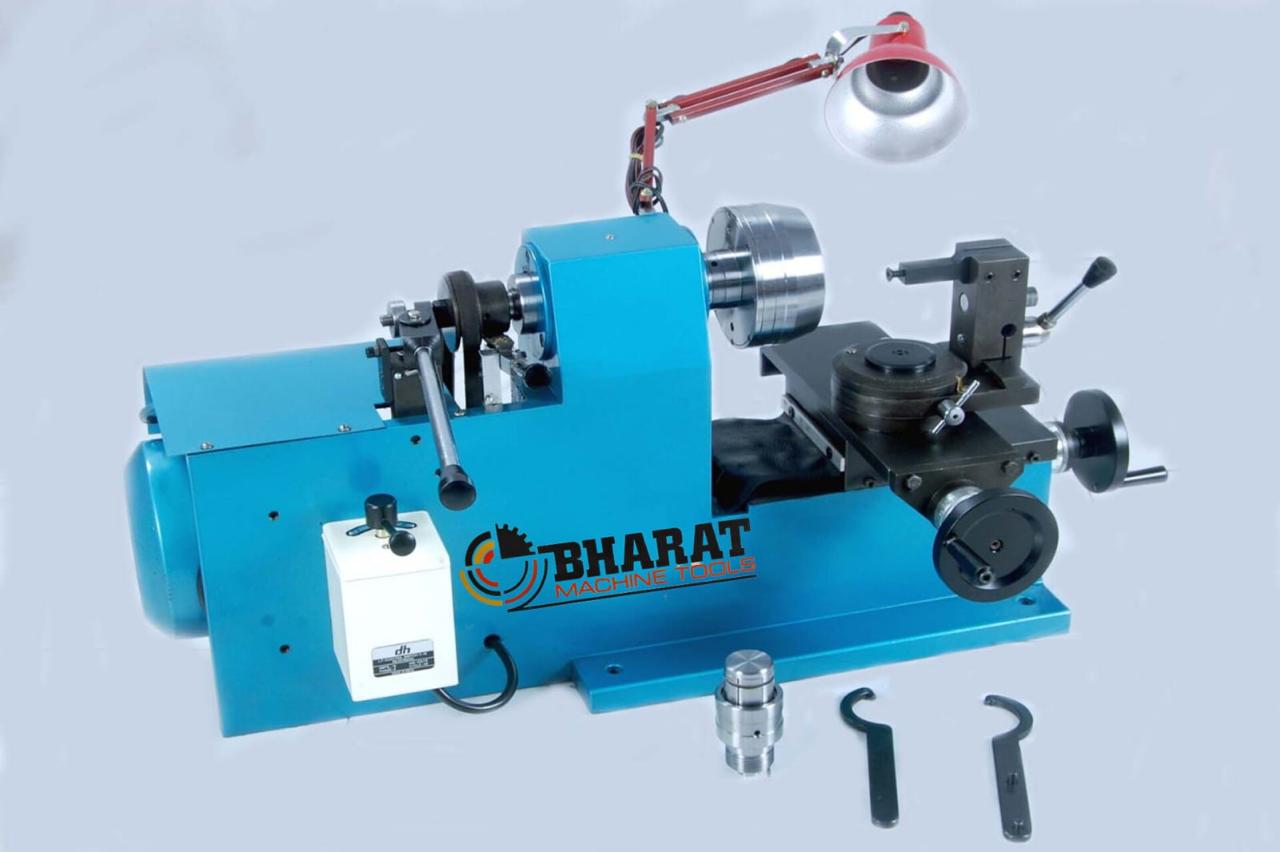

BANGLE AND RING TURNING MACHINE
Machine specification:
Bangle and ring turning machine is used for polishing the inner or outer surface of bangles and rings.Machine comes equipped with 2 type of chucks one for Bangle and other for ring.Bangle chuck varies in size from 2-2.75 inch diameter and ring chuck varies in size from 16mm-24mm diameter.The main parts of machine are clutch,spindle,break and Universal turn table.Before putting the chuck on the spindle we need to do a clutch.Spindle is used to rotate the clutch with the help of motor.There are two sliders horizantal and vertical which are used to adjust the position of tool for inner or outer polishing of bangles and rings. Universal turn table needs to be adjusted on the basis of whether goldsmith wants to make flat cut or radius cut on bangles. Bangles and rings are attached to the chuck with the help of collets.Bangle inner collet varies in diameter of 2-2.75 inch and comes in 25 pieces.Bangle outer collet also varies in size from 2-2.75 diameter and comes in 13 pieces.For ring,both inner and outer collet varies in diameter from 10mm-24mm and comes in 10 pieces each.
| DESCRIPTION | BMT 75 | |
|---|---|---|
| Motor | 1 hp/0.75 kw 2800 rpm | |
| Machine Net Weight | 65 kg | |
| Machine dimension(in cm) | 80x41x35 | |
| Chuck diameter(Inner and outer) | Bangles 2-2.75 inch | Rings 16mm-24mm |
| Nylon Collets Inner Quantity | Bangles 25 | Ring 10 |
| Nylon Collets Outer Quantity | Bangles 13 | Ring 10 |
