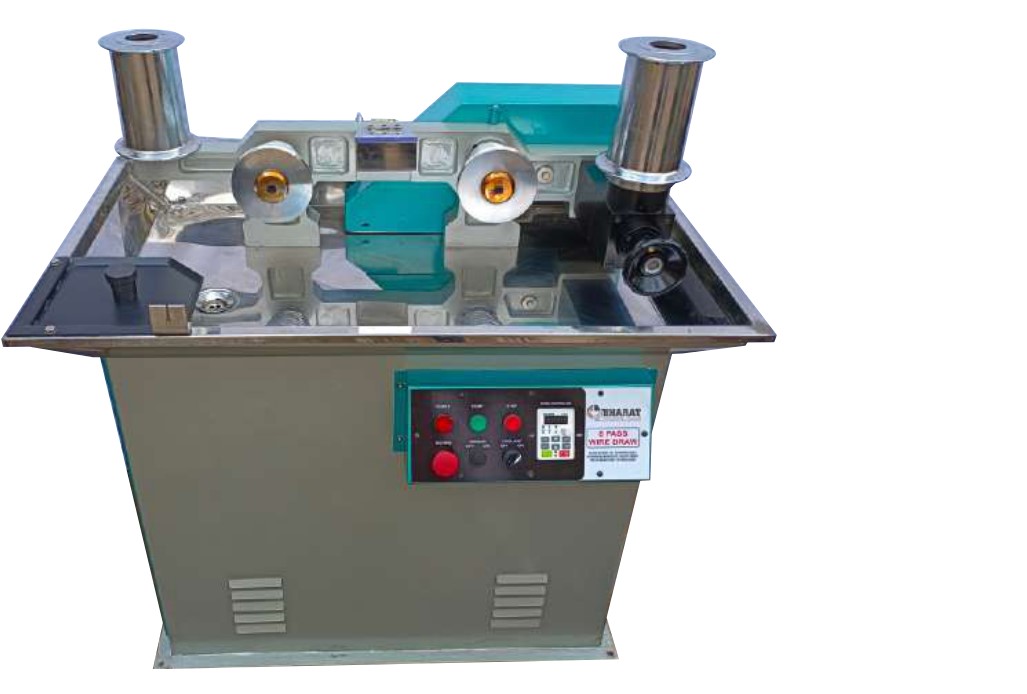

WIRE DRAWING MACHINE
Machine specification:
Wiredrawing machine comes in 3 varieties:6 pass,8 pass and 12 pass. It is used to lengthen wire and decrease
diameter.The jewellery business depends heavily on wire drawing machines, which pull precious metals like gold and silver
into wires of various thickness. In order to create elaborate shapes and patterns, jewellers need constant, high quality wire,
which the machine makes possible.
The metal’s surface polish is also improved by brushing, increasing its durability and resistance to wear and strain.
Jewelers can produce fine wire with the use of a wire drawing machine for use in a range of jewelry-making processes,
such as weaving and beading. Drawing machines are essential equipment for jewelers who want to create complicated,
high-quality jewelry.

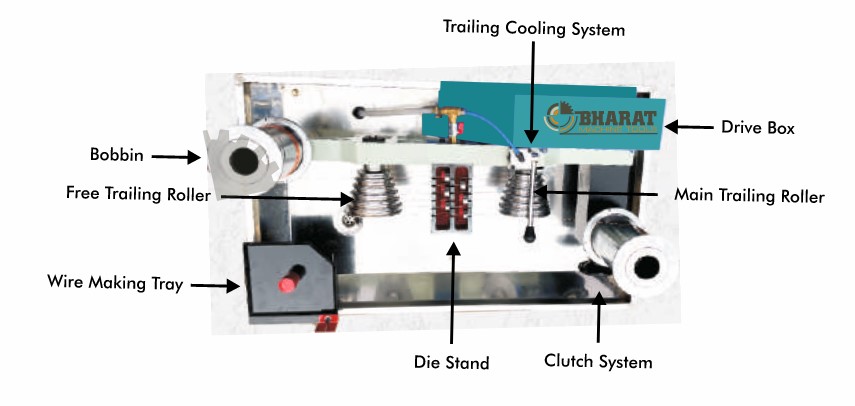

The machine has high working efficiency. Line wheel is made precisely of imported materials and the carburization on its
wheel surface improves abrasive resistance.The motor adopts step less speed modulation design and is equipped with
automatic winding displacement and rewinding machine.The whole machine is equipped with automatic cooling system which
can automatically stop the machine when the work is finished.
WIRE DRAWING MACHINE TECHNICAL DETAILS
| Desription | BMT 82 | BMT 83 | BMT 84 |
|---|---|---|---|
| Model type | 6 Pass | 8 Pass | 12 Pass |

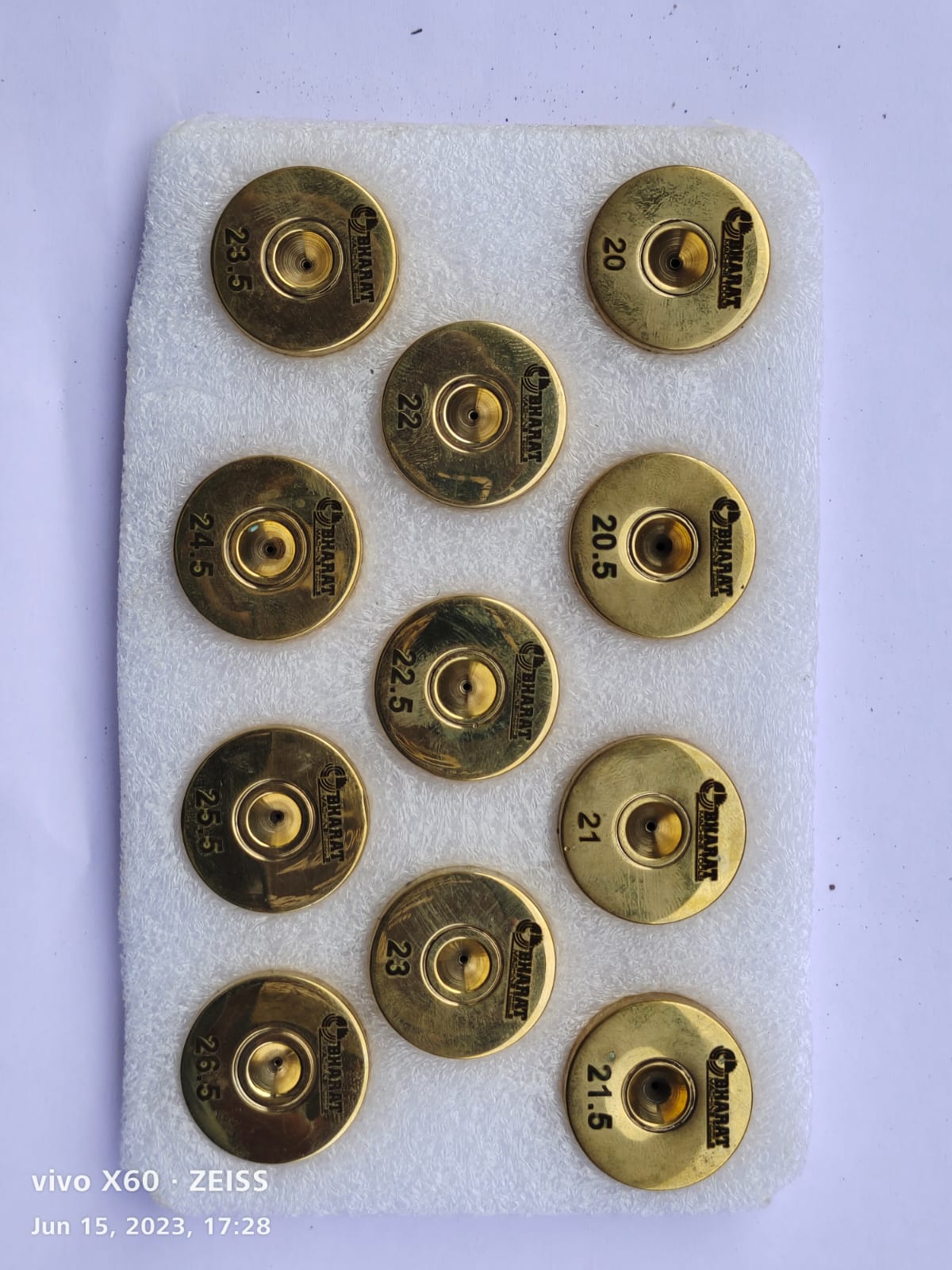

| Max Wire Die(Gauge/mm) | 18/1.2 | 15/1.5 | 14/2.0 |
| Min Wire Die(Gauge/mm) | 47/0.05 | 47/0.05 | 47/0.05 |
| Motor Power | 2 HP | 3 HP | 3 HP |
| Cooling Motor | 0.25 Hp | 0.25 Hp | 0.25 Hp |
| Machine Dimension(in cm) | 110 X 63 X 115 | 130 X 70 X 120 | 150 X 85 X 135 |
| Marking Net Weight | 350 kg | 400 kg | 550 kg |
