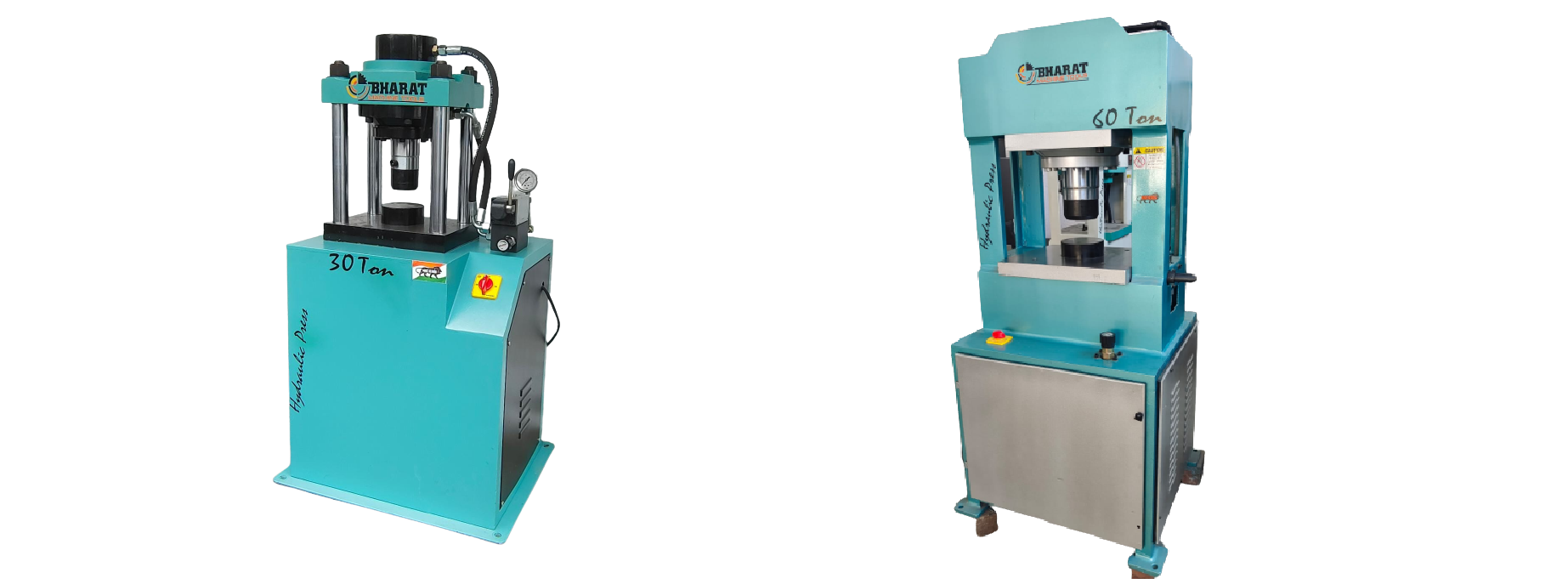

MANUAL HYDRAULIC PRESSES(30,40,60,80 TON)

Machine specification:

Get Quotation

A manual coin-making hydraulic press is used in production of gold and silver coins and bars. The machine is designed to allow precise
stamping and shaping of coins, resulting in high quality finish that meets highest standard of quality and precision.

FEATURES

PLC Control Panel
High embossing forces
High stroke and fast production
Multiple strokes with variable force and die lifting
High/low pressure system having an indicator

Manual hydraulic presses available sizes and technical details

Model	BMT 30	BMT 31	BMT 32	BMT 33
Capacity	30 ton	40 ton	60 ton	80 ton
Cylinder	80 mm	100 mm	120 mm	140 mm
Cylinder Stroke work	100 mm	100 mm	110 mm	120 mm
Working weight	550 kg	550 kg	800 kg	950 kg
Oil capacity	40 ltr	40 ltr	50 ltr	65 ltr
Power supply	2 HP/3 HP	2 HP/3 HP	3 HP/3 HP	5 HP/3 HP
Machine Net Weight	350 kg	550 kg	780 kg	1500 kg

These are just sample designs. Any type of cutting of any design can be done on any metal sheet.
